Machine à usiner CNC de bureau 200x150 mm, machine de fraisage DIY, livraison gratuite par mer
affichage du produit :
spécifications.
| 2015 Gantry Milling | ||
| Items | ltems Details | Configurations |
| Frame Machine | XYZ Accident vasculaire cérébral | 200*150*100mm |
| XYZ Guide Rail | HIWIN XYZ20 guide rail | |
| XYZ Vis à billes | TB1 1605 C7 | |
| Taille de la table de travail | 200*200mm | |
| Dimension | 620*750*850 | |
| Béton | HRB Angular contact bearings | |
| Matériau de cadre | traitement de trempe à deux reprises | |
| Couverture de protection | Couverture d'organisme pour axe XYZ | |
| Interrupteur limite | Origine des axes XYZ | |
| XY Verticality | +j-0.01mm/200mm | |
| Zy Verticality | +j-0.01mm/200mm | |
| Xz Verticality | +j-0.01mm/200mm | |
| Table Flatness | >0.03mm | |
| Repeatability | 0.01mm | |

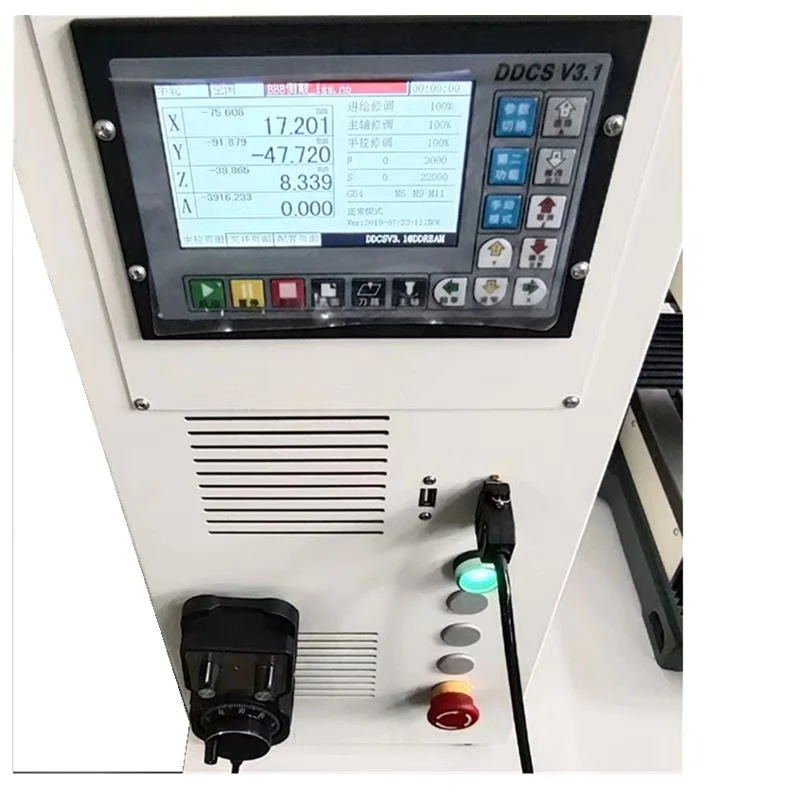

| CNC Controller | DDCS V3.1 or MACH3 | |
|

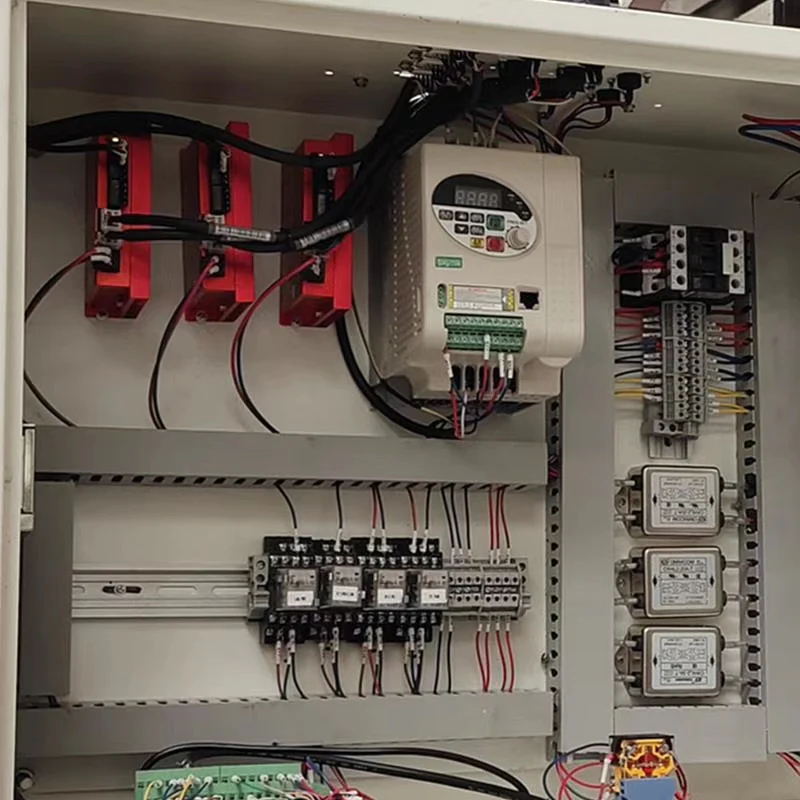

Electrical accessories |
Z axis motor | 57 stepper motor 2N.M |
| XY axis motor | 57 stepper motor 2N.M | |

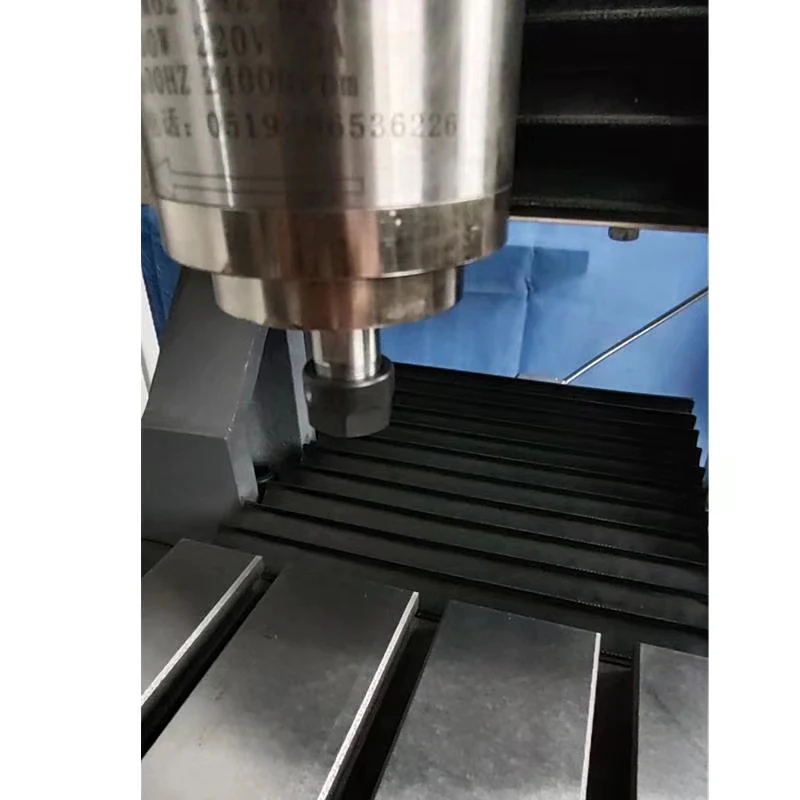

| Spindle | 800W 2400ORPMSSmm diameterer11 | |
| Spindle VFD | 1000w | |
| Power Supply | 600W 48V powersupply | |
| Aviation plug | Spindle,powersupply,inputoutput,motor | |
| Isolator | Filter 20A | |
| Other Parts | Cable,relay, airswitch.buttonsetc | |
| Coolant | Cutting Coolant | Water pump |
| Spindle Coolant | Water pump | |
| Cover | Controller Box | tabletop electric controlbox |
|
The Whole Machine |
Support software | MasterCAM,Powermill,UG,CAXA etc |
| Cutting Materials | Brass, Steel,Aluminum,PVC etc | |
| Total Weight | 150kg about | |
| Suitable Industry | Industry Company/University/ETC | |
